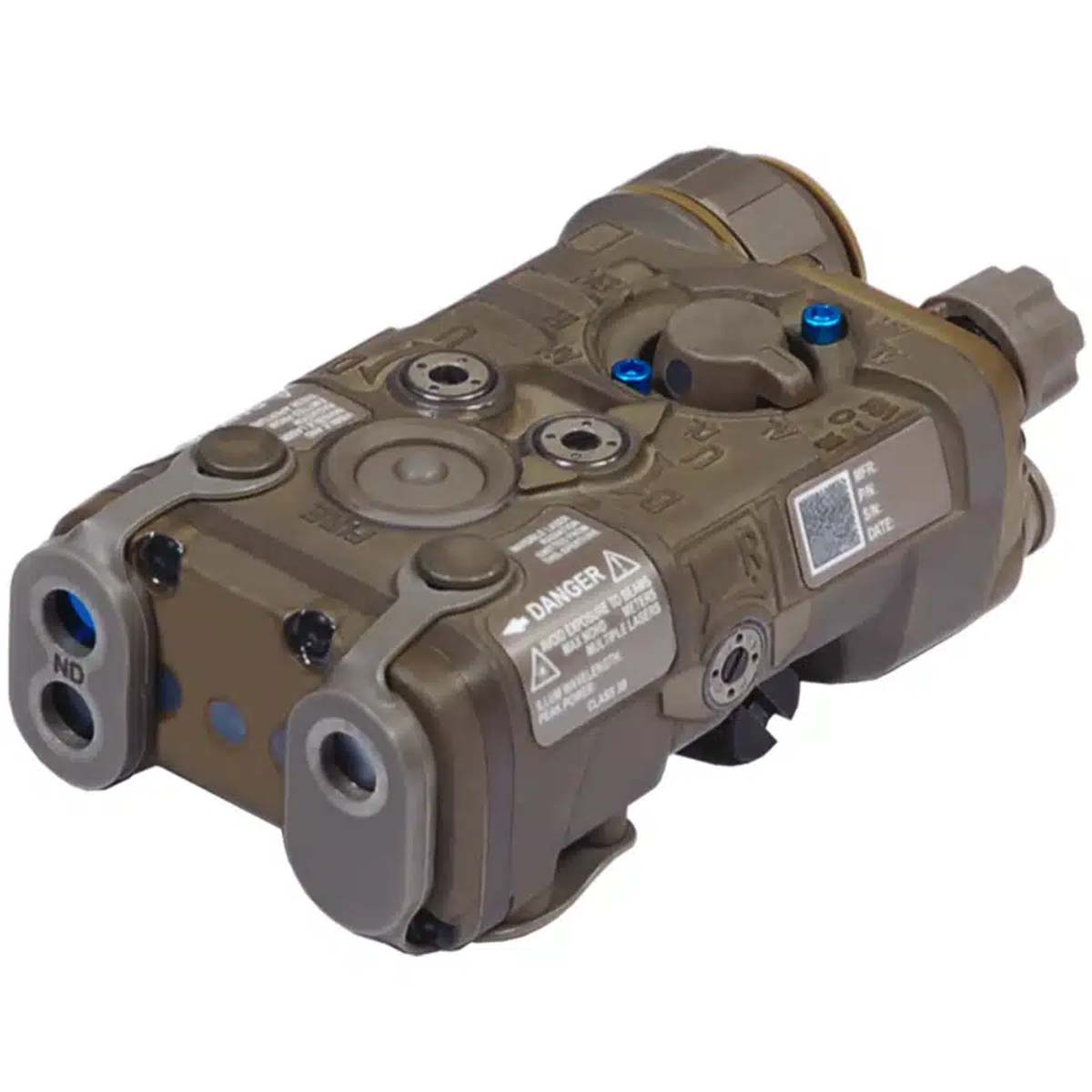

Generation Aiming Laser

Credit card footprint

3.6″ × 2.0″ × 1.25″ — significantly smaller and lighter than the PEQ-15 while maintaining full capability. Under 5 oz with battery.

High and low power modes

Both visible and IR outputs have selectable high and low power settings. Low power for eye-safe use in training or close quarters; high power for maximum range.

Visible aiming laser — red

635nm red visible laser. ≤4.9mW low (Class 3R) / ≤80mW high (Class 3B). Beam divergence 0.3 ±0.2mrad.

IR aiming laser

840nm IR laser. ≤0.6mW low (Class 3R) / ≤35mW high (Class 3B). Co-aligned with visible laser — zero visible in daylight, IR is zeroed to the same point of impact.

Variable divergence IR illuminator

860nm IR illuminator. ≤2.7mW low / ≤90mW high. Adjustable beam from ≤15mrad tight spot to ≥105mrad wide flood. Advanced illuminator design produces a more uniform NIR beam for increased situational awareness.

Co-aligned aiming beams

Visible and IR aiming lasers co-aligned with boresight retention ≤0.5mrad. Independent boresight adjusters for aim and illuminator.

Tri-color LED status indicator

Indicates mode and battery status at a glance.

Remote jack

Accepts remote pressure pad switch for activation without breaking firing grip.
