Prototyping costs are primarily driven by setup labor, design complexity, material choice, and tooling requirements.
Because prototypes are built in low volumes, fixed up-front costs—known as Non-Recurring Engineering (NRE) fees—cannot be distributed across thousands of units, making individual units significantly more expensive than final production parts.
Understanding how different manufacturing processes dictate these costs is vital for balancing your budget with your engineering goals.
Cost Breakdown by Manufacturing Process
| Process | Typical Cost Range | Setup Cost | Production Speed | Best Suited For |
|---|---|---|---|---|
| 3D Printing | ~$20–$200+ | Very low | Fast (hours–days) | Early-stage concepts & quick iterations |
| CNC Machining | ~$100–$1,000+ | Low–Medium | Medium (days) | Functional testing & tight tolerances |
| Urethane Casting | ~$200–$5,000+ | Medium | Medium (weeks) | Low-volume pre-production batches |
| Injection Molding | ~$1,000–$10,000+ | Very high | Slow up front | High-volume production-intent parts |
Core Drivers Across Key Processes

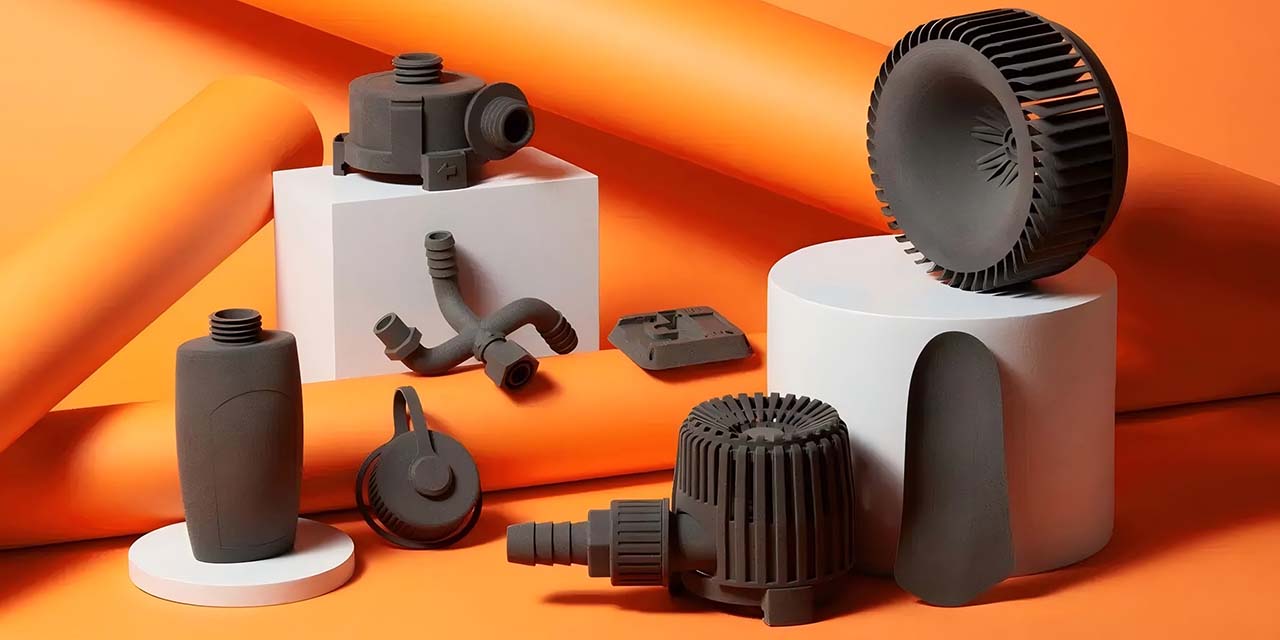

1. 3D Printing (Additive Manufacturing)
3D printing features the lowest entry barrier for early-stage prototypes.
-
- Primary Cost Drivers: Part volume and print time. Because there is virtually no setup or tooling expense, you pay almost exclusively for the raw material used and how long the machine runs.
- Fidelity Impact: Basic plastic models (using PLA or ABS) are inexpensive. Upgrading to industrial technologies like Selective Laser Sintering (SLS) or metal 3D printing drives costs up quickly due to specialized raw powders and post-processing requirements.
2. CNC Machining (Subtractive Manufacturing)
CNC machining delivers highly accurate, production-grade plastic or metal components.
-
- Primary Cost Drivers: Machine programming and setup time. An estimator calculates how long it will take an engineer to write the machine code and design specialized fixtures to hold your part.
- Geometry Impact: Complex shapes requiring multiple machine rotations or specialized, tight tolerances drastically extend machining time and increase scrap rates, raising your bill.
3. Urethane Casting (Bridge Tooling)
Urethane casting bridges the gap between a single prototype and full mass production by using a 3D-printed master pattern to create flexible silicone molds.
-
- Primary Cost Drivers: Master pattern creation and mold labor.
- Quantity Impact: While the initial silicone mold carries a moderate upfront cost, it can typically yield 20 to 25 crisp, functional parts. This significantly drops the per-unit cost compared to machining each piece individually.
4. Injection Molding (High-Volume Validation)
Injection molding requires fabricating hard, robust metal molds (usually steel or aluminum).
-
- Primary Cost Drivers: Tooling complexity. The initial cost to cut the metal mold is exceptionally high.
- Volume Trade-off: It is rarely economical for a single prototype. However, if your validation phase requires hundreds of identical, production-intent parts, it offers the lowest per-piece price through extreme economies of scale.
Universal Cost Drivers to Watch
-
- Lead Time: Choosing expedited or rush turnarounds forces shops to reconfigure machine schedules or run overtime, adding steep premiums.
- Surface Finishes: Secondary post-processing steps like anodizing, hand-polishing, painting, or texture matching require specialized manual labor and vendor coordination.
- Internal Complexity: Prototypes that combine custom moving mechanical parts with electronic circuits require firmware calibration, safety testing, and extensive labor, frequently pushing total development costs past $15,000 to $50,000.
To help narrow down your budget, could you share which process you are considering or what specific function (e.g., visual display, mechanical fit, or rugged field testing) your prototype needs to perform?
